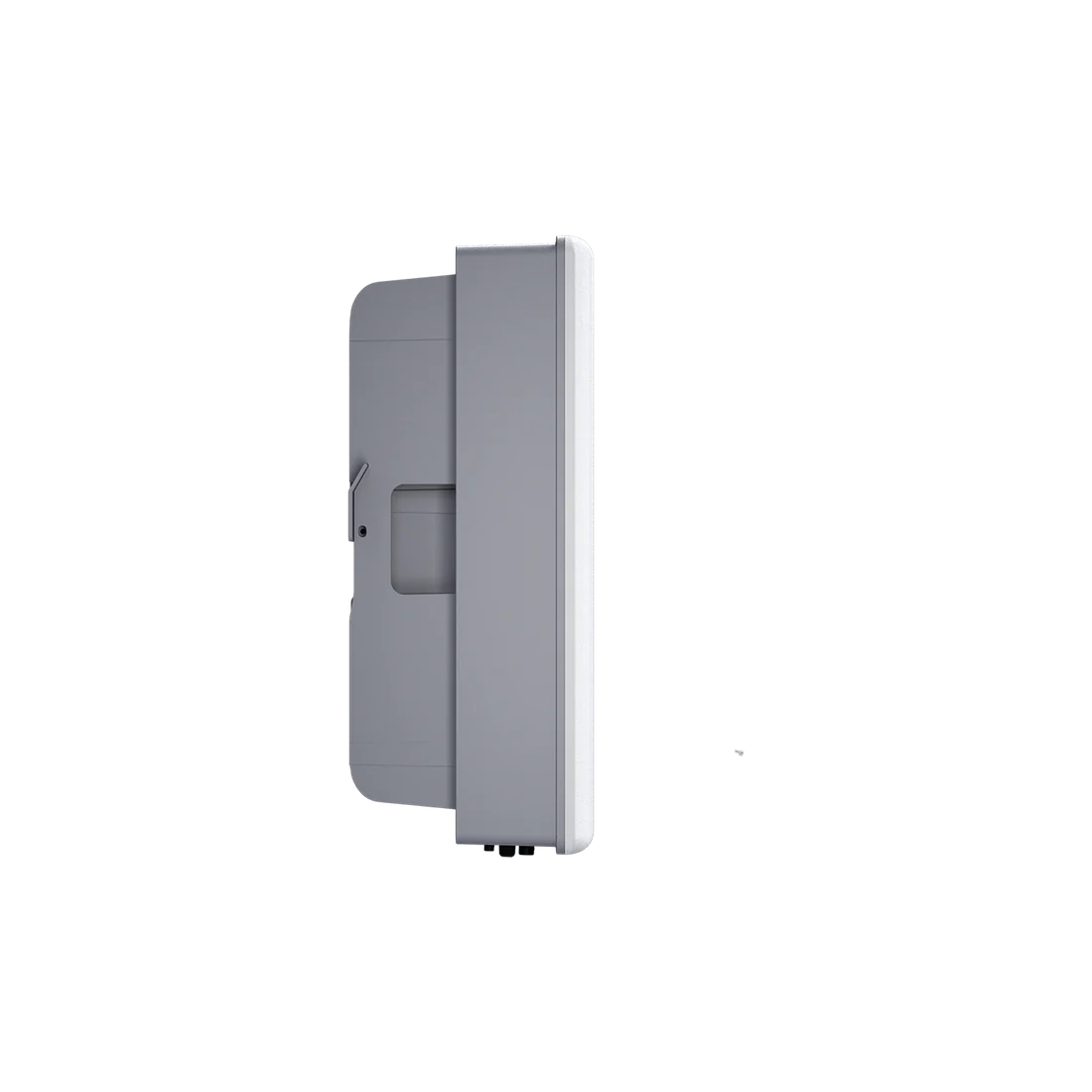

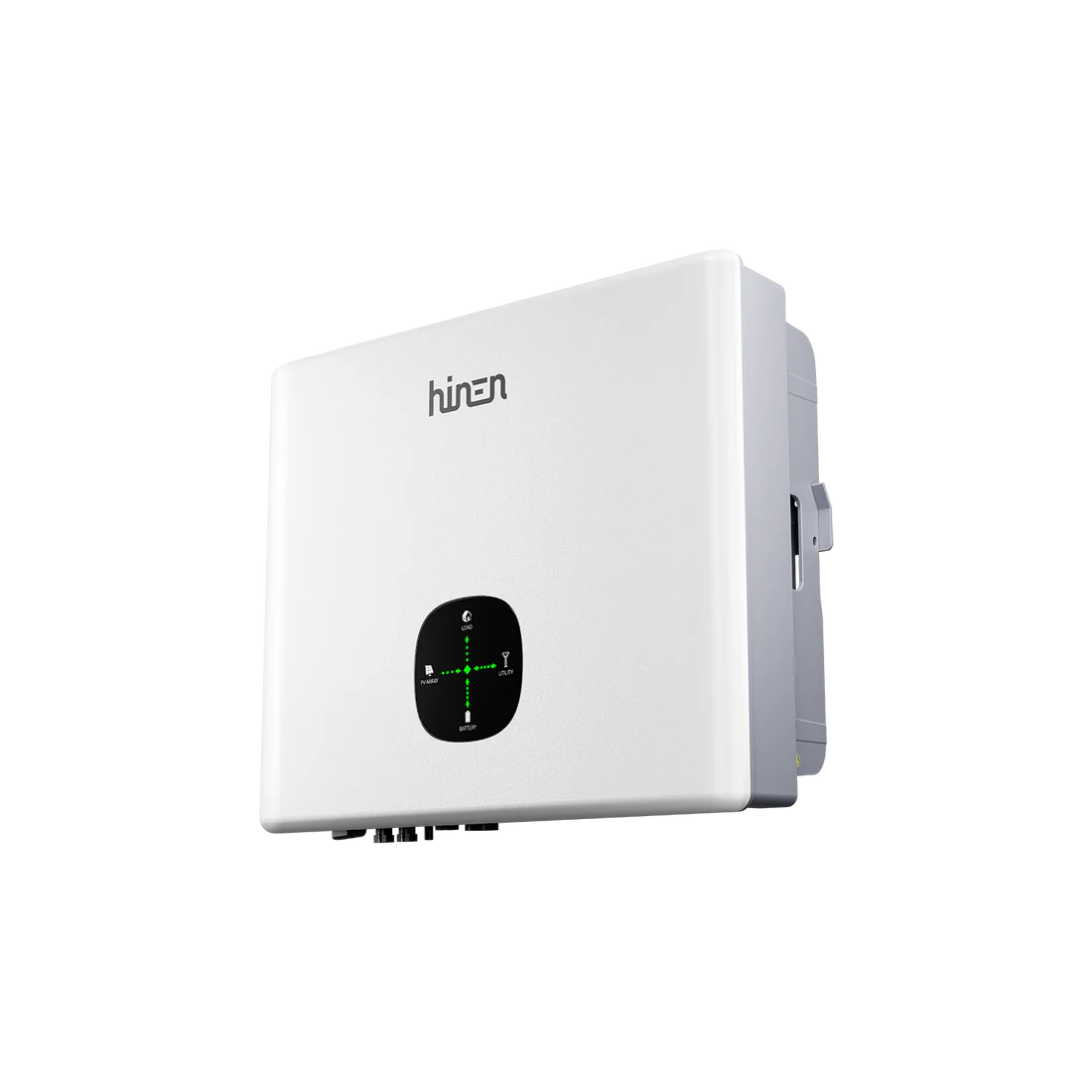

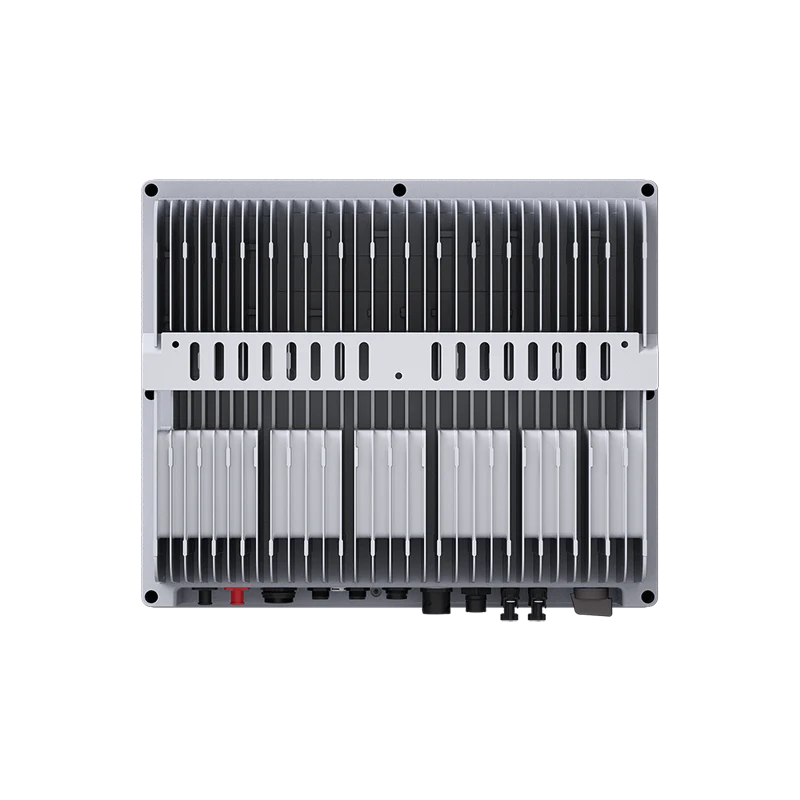

Hinen 6kW Hybrid Inverter (H6000)
In Stock (1000)
Secure Payments:
Specifications & Pricing
- Branch SED JHB
- Category Hinen
- Description Hinen 6kW Hybrid Inverter
- Product Code INV-HINEN-H6000-Hybrid
- MFR Code H6000
Additional information
| Inverter Type | Hybrid Inverter |
|---|---|
| Phase Type | Single Phase (1PH) |
| AC Output Power (W) | 11 400 |
| Max. AC Output Power (W) | 11 400 |
| AC Output Current (A) | 27.3/26.1 |
| Max. AC Output Current (A) | 27 |
| Battery Voltage (V) | 50 |
| Battery Voltage Range (V) | 42 - 58 |
| Battery Max. Charge Current (A) | 120 |
| Battery Max. Discharge Current (A) | 120 |
| Battery Types | Lead-acid or Lithium-ion |
| MPPT trackers/strings | 2/1 |
| MPPT Max. Input Power (W) | 11 400 |
| MPPT Max. Voltage (V) | 550 |
| MPPT Voltage Range (V) | 90 - 520 |
| MPPT Input Current (A) | 39 |
| MPPT Max. Input Current (Isc) | 16 |
| *Warranty Period (Years) | 10 |
| IP Rating | IP66 |
| Weight (Kg) | 29.6 |
| Dimentions (LxWxH) mm | 188 x 568 x 472 |
| Communication | RS485; CAN, LAN, WiFi |
